ABG Deckdrain Geocomposite
ABG Deckdrain is a high-capacity geocomposite drainage solution engineered to rapidly remove water from structural decks and trafficked surfaces.

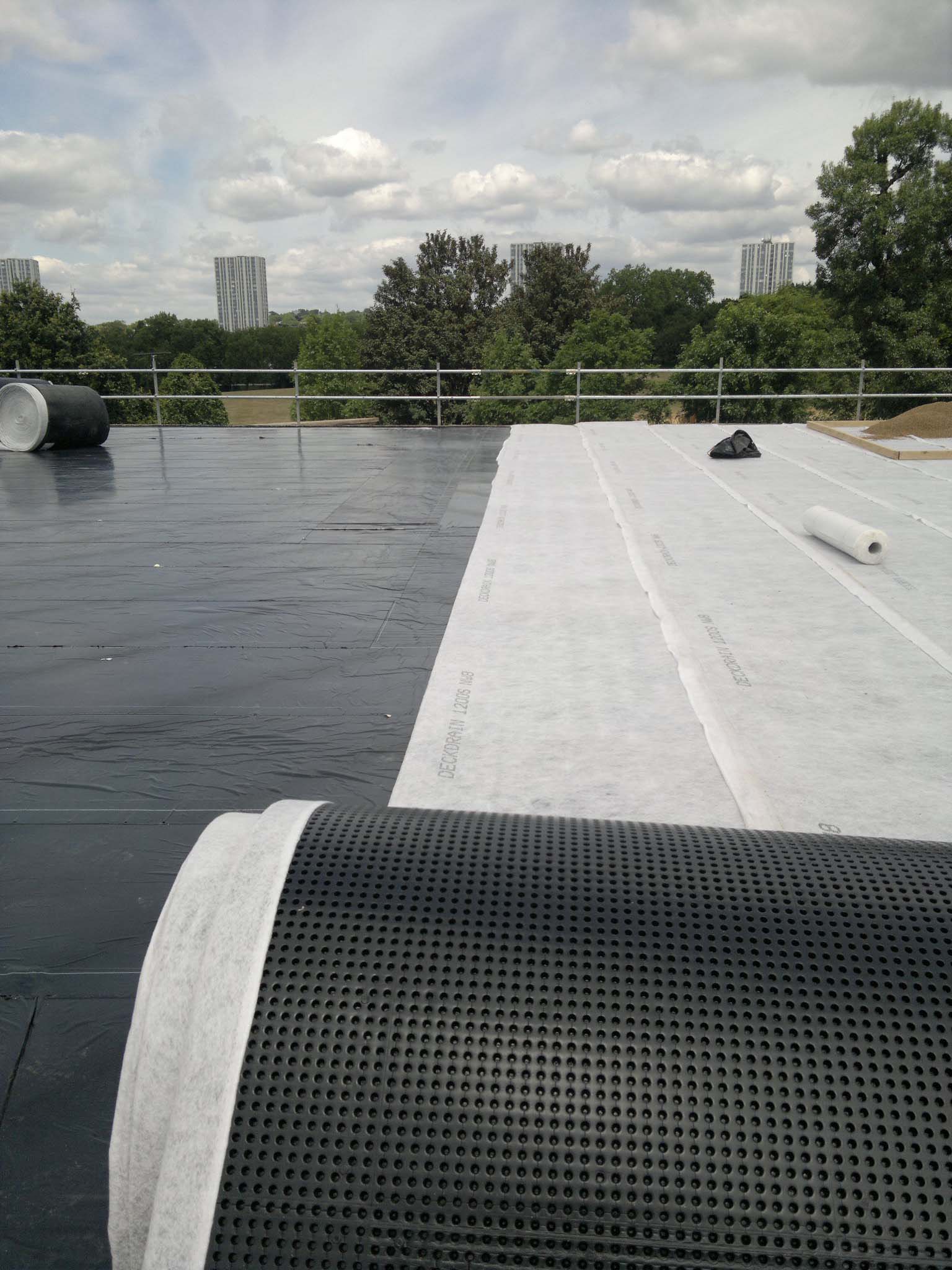

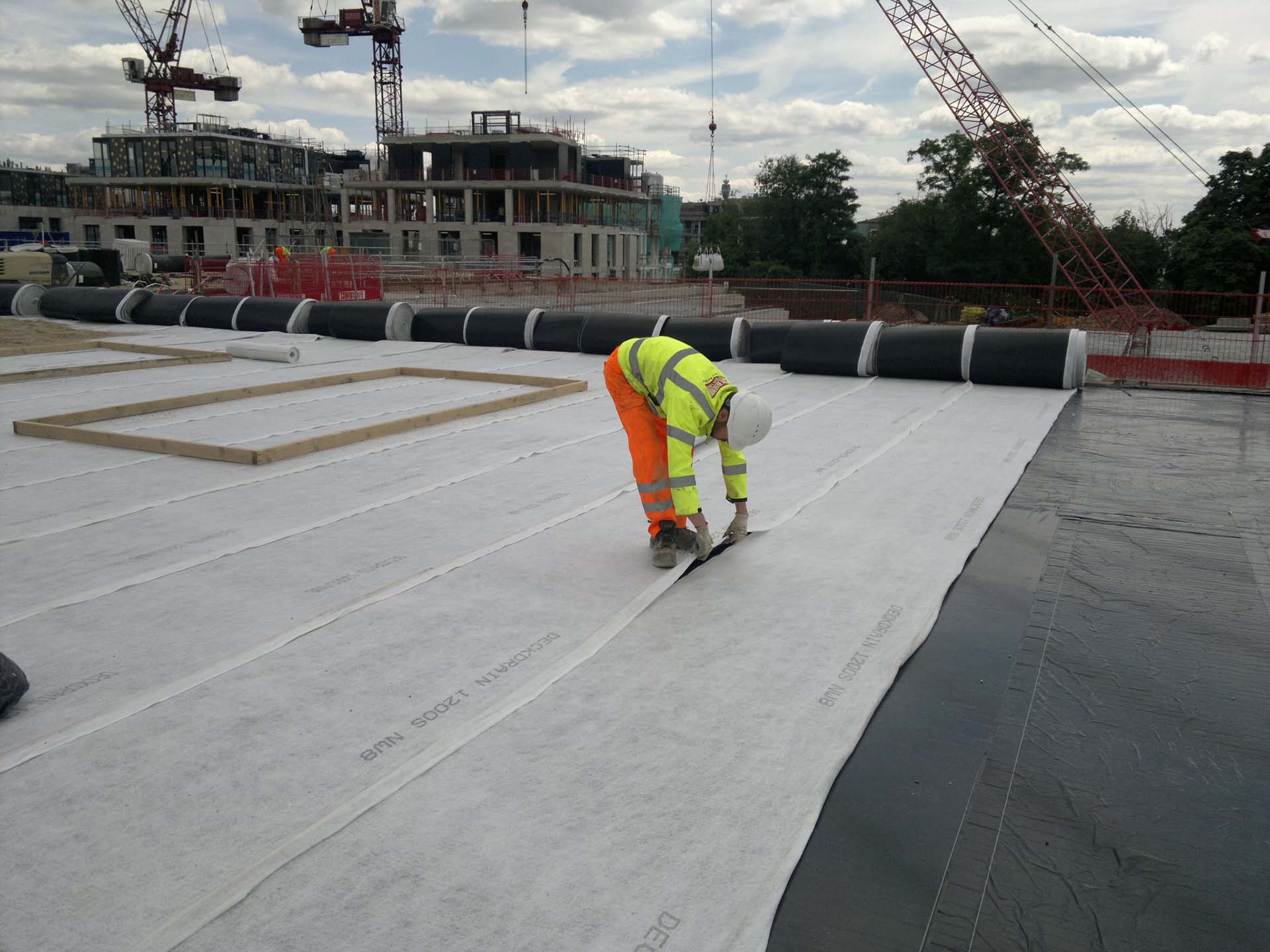

ABG Deckdrain is a purpose-designed geocomposite drainage solution developed for structural decks, podiums, and buried structures where effective water removal is essential. Combining a durable cuspated core with a bonded geotextile filter layer, it forms a continuous drainage layer that safeguards waterproofing systems and helps extend the service life of the structure.
Engineered to perform under load, Deckdrain maintains strong flow capacity even when exposed to traffic or overburden pressures. Its prefabricated design removes the need for traditional drainage aggregates, helping to reduce installation time, labour requirements, and on-site handling – particularly beneficial in constrained urban and infrastructure environments.
By improving drainage performance and reducing reliance on quarried materials, Deckdrain supports more efficient, durable, and sustainable construction outcomes.
Typical applications include:
- Structural decks and suspended slabs
- Podium decks and rooftop landscapes
- Basement roofs and underground structures
- Car parks and trafficked deck areas
- Bridge decks and civil infrastructure
- Plaza decks and public spaces
- Green roofs and landscaped areas
- Tunnels and buried structures
- Planter boxes and confined drainage zones
Frequently Asked Questions
Where is Deckdrain typically used?
Deckdrain is commonly used on bridge decks, podium slabs, planter boxes, car parks, and buried roofs where effective drainage is essential.
Can Deckdrain be used with waterproofing membranes?
Yes, Deckdrain is specifically designed to be installed above waterproofing systems, helping to protect the membrane while relieving water pressure.
Does it replace traditional drainage layers?
Yes, it replaces aggregate drainage layers, offering a more efficient, lightweight, and consistent solution.
How does Deckdrain perform under load?
The cuspated core is engineered to resist compression, ensuring that water flow is maintained even under significant loads from traffic or overburden.
Benefits & Features
- Protects waterproofing and extends structure life
- Fast installation with no drainage aggregates required
- Maintains high flow under load and trafficked conditions
- Ideal for tight spaces and complex structural builds
Specifications
Code
Product
Size
Deckdrain 600s/NW8
2.2m x 25m
Deckdrain 1200s/NW8
2.2m x 25m
